LifeForge standard reservoir bag is a convenient disposable solution for a variety of biopharmaceutical applications, such as preparation, storage and transportation of formulations, sterile liquids or buffers. The liquid storage bag does not contain animal-derived ingredients and is pre-sterilized by gamma rays; it can be used in your existing process at any time-out of the box.

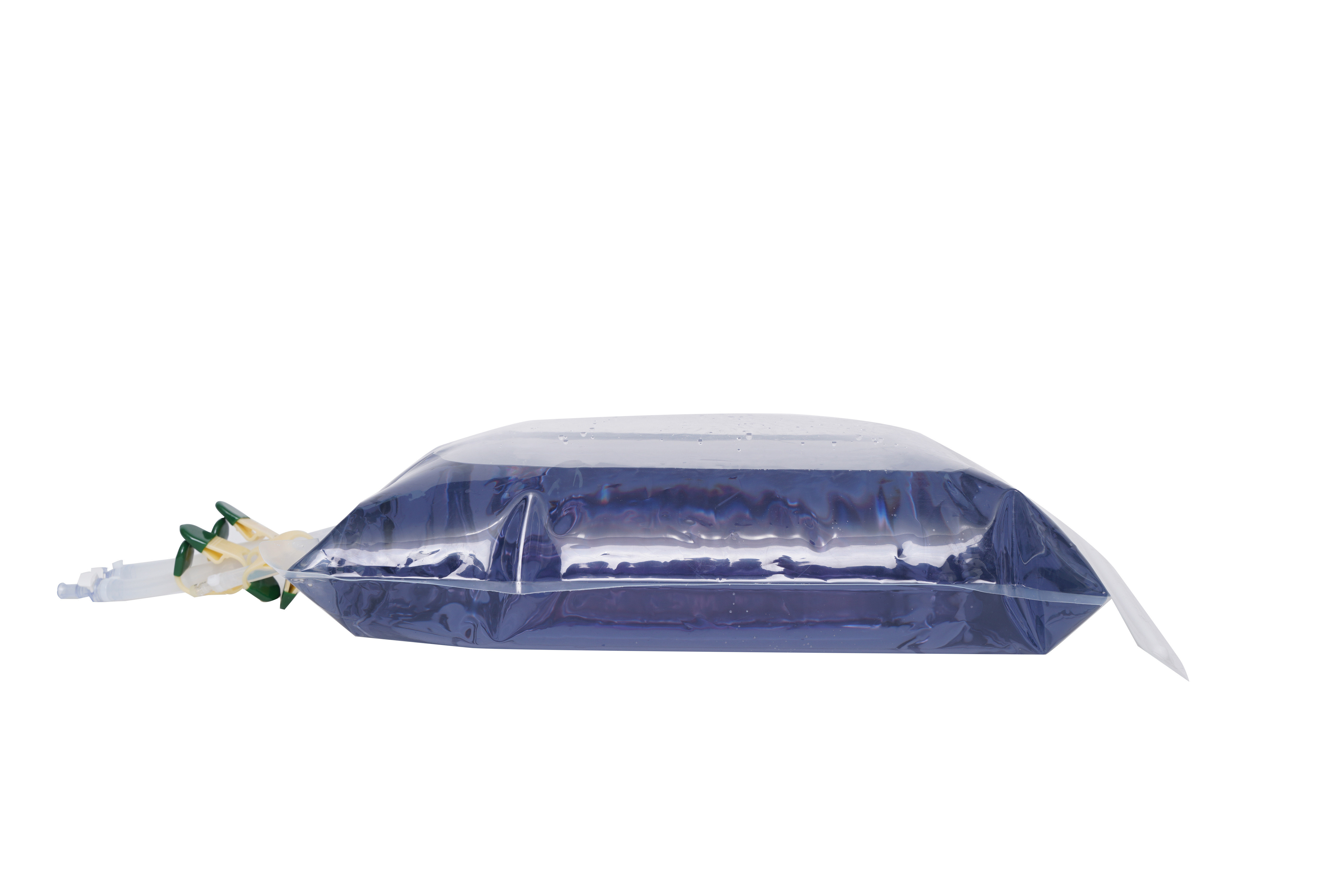

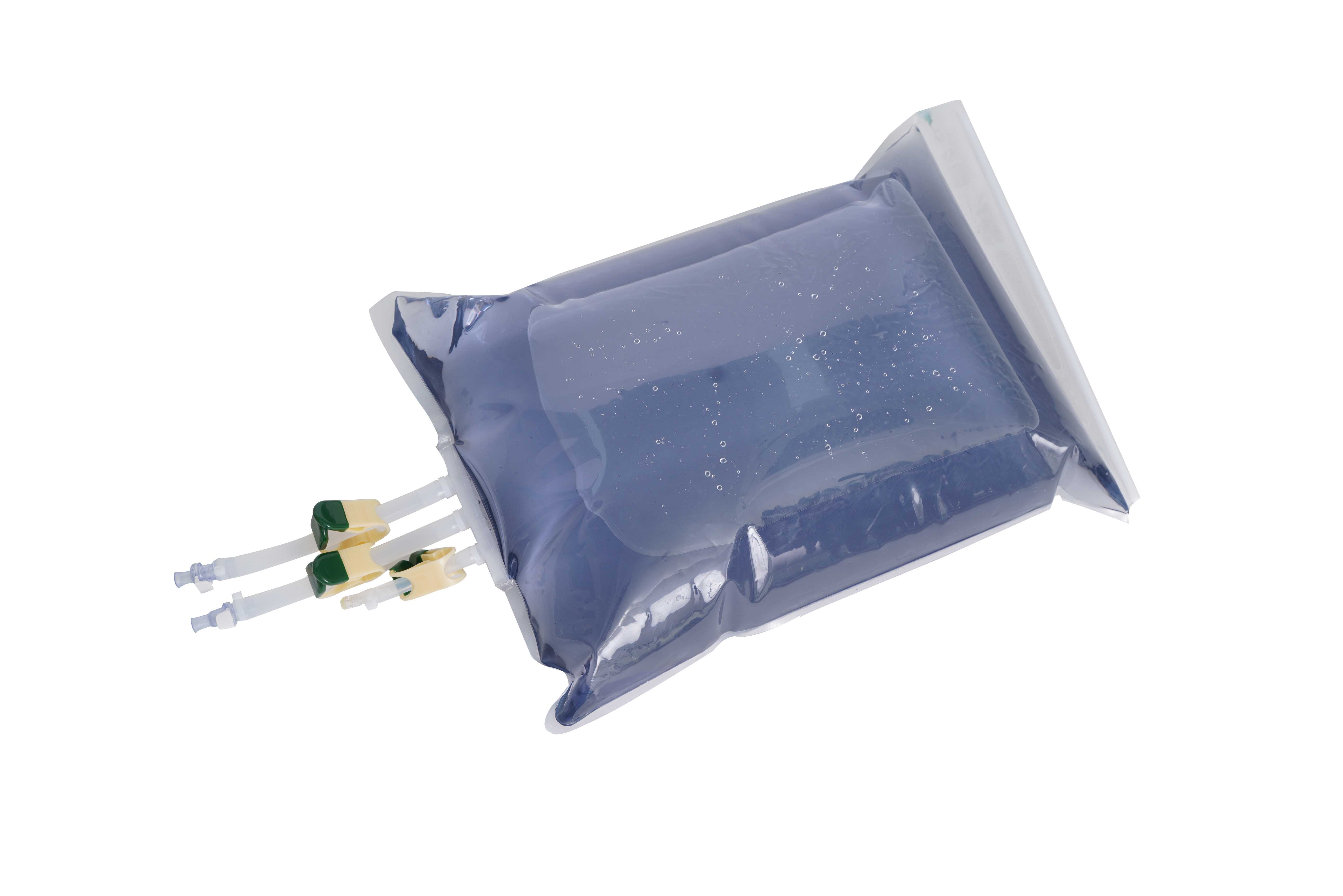

LifeForge 2D Pillow Standard Liquid Storage Bag
vary in volume from 5mL to 50L and consist of a bag body, tubing with a clamp, fittings and a sterile disconnect seal. The bag body is equipped with suspension rods or suspension holes for easy suspension. Each liquid storage bag is equipped with a standard quality certificate.

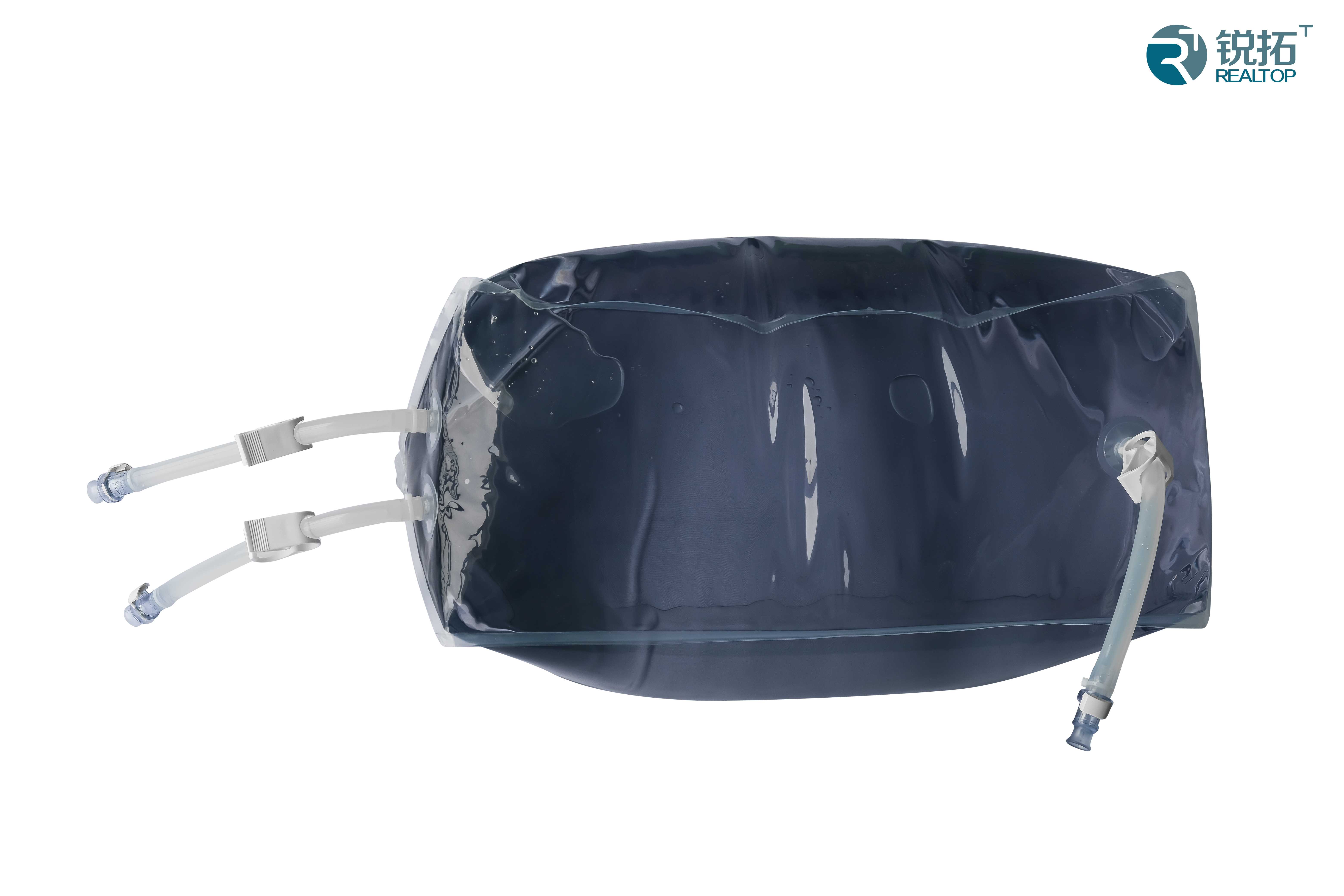

LifeForge 3D Disposable Liquid Storage Bag/LifeForge 3D Barrel Standard Liquid Storage Bag
The volume of this kind of liquid storage bag is from 50L to 1000L, which is composed of a bag body made of PuRobust film, a silicone tube and a joint. The bag body is specially designed to fit the round support bucket and the square foldable support bucket. A fixed article may also be provided to accommodate other round support buckets and square support buckets as required.
Quality Assurance
Rituxan standard fluid storage bags are manufactured in facilities that comply with the CGMP guidelines. The composition of the material after gamma ray irradiation test, in line with the United States Pharmacopeia sixth class plastic biological reactivity test standard (USP<88> CLASSVI). The pressure decay method is used for leak testing of each batch of products to ensure product quality. Each Ruituo liquid storage bag has the quality assurance of materials and workmanship.
Validation Support Services
Validation support for single-use solutions, the Rituxan Validation Lab provides robust application, validation and engineering support. We can help you integrate and validate single-use packages in your own processes while ensuring product quality and compliance.
Each standard liquid storage bag is equipped with a standard quality certificate.
| Certificate Type | shelf life | Sterility Assurance | endotoxin & particulate matter | Leak Test | USP<88>:Class VI |
|---|---|---|---|---|---|
| preparation type | 2 years | Representative Sample Quarterly Inspection | batch inspection | Test one by one | parts after irradiation |
| Standard | 2 years | Representative Sample Quarterly Inspection | Representative Sample Quarterly Inspection | Test one by one | parts after irradiation |
| Application | advantage |
|---|---|
| buffer and medium | manufacturing process is stable and reliable |
| sterilization filtration | can be enlarged |
| Storage | Tough membrane material |
| feeding medium | membrane material extractable content is low |
| intermediate storage | completed validation for multiple applications |
| transportation between different locations |
Overall dimension of bag body
| volume, L | 500 | 1000 |
|---|---|---|
| width, cm | 112.8 | 108.6 |
| depth, cm | 72 | 110.5 |
| high, cm | 69.9 | 94.0 |
can provide customized liquid storage bags, please consult local sales staff for details
| LifeForge 2D Pillow Type Standard Liquid Storage Bag * | |||||||||
| volume | 5ml | 50 ml, 100ml, 250 ml, 1L | 5L, 10L, 20L, 50L | ||||||
| Material | (1) PuRobust membrane | (1) The bag body is made of PuRobust film with hanging holes | (1) The bag body is made of PuRobust film and equipped with suspension rods | ||||||
| bag joint | (2) Single interface boat joint | (2) Two-interface boat joint | (2) Three-interface boat joint | ||||||
| Line | (3) Silicone Tubing, 1/8 "ID x 1/4 "OD, 5cm long | Upstream type: (3) C- Flex, 1/8” ID x 1/4” OD, 30cm long |
Downstream: (3) Silicone tube, 1/8 "ID x 1/4" OD, 15cm long |
Upstream type: (3) C- Flex, 3/8” ID x 5/8” OD, 30cm long (8) Spring clip |
Downstream: (3) Silicone tube, 3/8 "ID x 5/8" OD, 20cm long (11) Spring clip |
||||
| (6) Spring clip | (4) Silicone tube, 1/4 "ID x 1/2" OD, length 10cm | ||||||||
| End Fitting | (4) 1/8 "female luer connector (5) Heparin cap |
(4) 1/8 "female luer connector (5) Heparin cap |
(5) 3/8 "Blind Block | (5) 3/8 "MPC female connector (6) MPC female plug (7) 3/8 "MPC male connector (8) MPC male cap |
|||||
| (6) 1/4 "female luer connector (7) Heparin cap |
(9) 1/4 "female luer connector (10) Heparin cap |
||||||||
| Configuration |  |
 |
 |
 |
 |
||||
| Inspection Report | Ruituo Standard | ||||||||
| volume | 5ml | 50ml | 100ml | 250ml | 1L | 5L | 10L | 20L | 50L |
| length, cm | 15 | 11 | 15 | 19 | 31.5 | 43.1 | 59.1 | 66.1 | 90.1 |
| width, cm | 5 | 8.3 | 8.3 | 13 | 15 | 27.4 | 32 | 46.4 | 63.4 |
| LifeForge 3D cylindrical standard liquid storage bag * | ||
| bag volume | 50L, 100L, 200L | |
| Material * | (1) The bag body adopts PuRobust film material | |
| bag joint | Liquid inlet:(2) 1/2 ", (3) 1/4"; Liquid outlet:(2) 1/2" | |
| Line | Upstream type: (4) Silicone tube, 1/2 "ID x 3/4" OD, 70cm long (5) Silicone tube, 1/4 "ID x 1/2" OD, 10cm long (6) straight through equal diameter, 1/2" (7) C- Flex, 1/2 "ID x 3/4" OD, 30cm long (11) Spring clip |
Downstream: (4) Silicone tube, 1/2 "ID x 3/4" OD, 30cm long (5) Silicone tube, 1/4 "ID x 1/2" OD, 10cm long (10) Spring clip |
| End Fitting | (8) 1/2 "blind plugging (9) 1/4 "female luer connector (10) Heparin cap |
(6) 1/2 "HB to 1.5" TC (7) Dust cover (8) 1/4 "female luer connector (9) Heparin cap |
| Configuration |  |
 |
| Inspection Report | Ruituo Standard | |
| Overall dimension of bag body | volume, L | width * depth * height, cm |
| 50 | 31.75*30.48*66.04 | |
| 100 | 43.18*41.91*73.66 | |
| 200 | 52.07*50.8*88.9 | |
| LifeForge 3D Foldable Square Barrel Standard Liquid Storage Bag * | ||
| bag volume | 250L, 500L, 1000L | |
| Material * | (1) PuRobust film for bag body | |
| bag joint | Upstream type: Liquid inlet:(2) 1/2 ", (3) 1/4"; Liquid discharge:(2) 1/2" |
Downstream: Liquid inlet:(2) 3/4 ", (3) 1/4"; Liquid outlet:(2) 3/4" |
| Line | (4) Silicone Tube, 1/2 "ID x 3/4" OD, 120cm long (5) straight through equal diameter, 1/2" (6) C- Flex, 1/2 "ID x 3/4" OD, 30cm long (8) Silicone tube, 1/4 "ID x 1/2" OD, 10cm long (11) Silicone tube, 1/2 "ID x 3/4" OD, 70cm long (12) Spring clip |
(4) Silicone Tube, 3/4 "ID x 1" OD, Length 30cm (5) Silicone tube, 1/4 "ID x 1/2" OD, 10cm long |
| End Fitting | (7) 1/2 "Blind Block (9) 1/4 "female luer connector (10) Heparin cap |
(6) 3/4 "HB to 1.5" TC (7) Dust cover (8) 1/4 "female luer connector (9) Heparin cap |
| Configuration |  |
 |
| Inspection Report | LifeForge Standard | |
| Overall dimension of bag body | volume, L | width * depth * height, cm |
| 250 | 74.93*55.25*64.14 | |
| 500 | 107.95*106.05*50.8 | |
| 1000 | 107.95*106.05*93.98 | |
can provide customized liquid storage bags, please consult local sales staff for details
| Circular support bucket | |||
| Specifications | 50L round support barrel | 100L round support barrel | 200L round support barrel |
| volume, L | 50 | 100 | 200 |
| Barrel weight, kg | 3.18 | 4.99 | 9.98 |
| height (to lid), cm | 68.60 | 75.90 | 93.70 |
| diameter (with cover), cm | 35.60 | 48.00 | 65.00 |
| Cart | |||
| Specifications | 50L drum cart * | 100L Drum Cart * | 200 L drum cart * |
| weight, kg | 5.90 | 7.30 | 7.70 |
| diameter, cm | 38.10 | 48.00 | 58.40 |
| storage layer, cm | 14.50 | 14.50 | 14.50 |
| (including enclosure), cm | 15.90 | 15.90 | 17.20 |
| Material | |
| Circular support bucket | 304 stainless steel |
| drum cart | 304 stainless steel |
| Gimbal Caster | 304 stainless steel |
| Wheels | Polyolefin (PE) |
Drum cart includes storage layer, optional accessories
| LifeForge Foldable Support Bucket | ||
| Specification, L | 500L | 1000 L |
| width, cm | 60.90 | 115.50 |
| depth, cm | 81.00 | 115.50 |
| high, cm | 83.30 | 113.20 |
| Support bucket material | polypropylene | polypropylene |
| Disposable liquid storage bag | |||
| Description | volume | Quantity/Package | Item No. |
| LifeForge 2D pillow-shaped standard liquid storage bag, two-interface boat joint, upstream type | 50mL | 50 | PIL050MLC050 |
| LifeForge 2D pillow-shaped standard liquid storage bag, two-interface boat joint, upstream type | 250mL | 50 | PIL250MLC050 |
| LifeForge 2D pillow-shaped standard liquid storage bag, two-interface boat joint, upstream type | 1L | 50 | PIL0001LC050 |
| LifeForge 2D pillow-shaped standard liquid storage bag, two-interface boat joint, downstream type | 50mL | 50 | PIL050ML0050 |
| LifeForge 2D pillow-shaped standard liquid storage bag, two-interface boat joint, downstream type | 250mL | 50 | PIL250ML0050 |
| LifeForge 2D pillow-shaped standard liquid storage bag, two-interface boat joint, downstream type | 1L | 50 | PIL0001L0050 |
| LifeForge 2D pillow-shaped standard liquid storage bag, three-interface boat joint, upstream type | 5L | 50 | PIL0005LC010 |
| LifeForge 2D pillow-shaped standard liquid storage bag, three-interface boat joint, upstream type | 10L | 50 | PIL0010LC010 |
| LifeForge 2D pillow-shaped standard liquid storage bag, three-interface boat joint, upstream type | 20L | 5 | PIL0020LC005 |
| LifeForge 2D pillow-shaped standard liquid storage bag, three-interface boat joint, upstream type | 50L | 5 | PIL0050LC005 |
| LifeForge 2D pillow-shaped standard liquid storage bag, three-interface boat joint, downstream type | 5L | 50 | PIL0005L0010 |
| LifeForge 2D pillow-shaped standard liquid storage bag, three-interface boat joint, downstream type | 10L | 50 | PIL0010L0010 |
| LifeForge 2D pillow-shaped standard liquid storage bag, three-interface boat joint, downstream type | 20L | 5 | PIL0020L0005 |
| LifeForge 2D pillow-shaped standard liquid storage bag, three-interface boat joint, downstream type | 50L | 5 | PIL0050L0005 |
| LifeForge 3D cylindrical standard liquid storage bag, upstream type | 50L | 5 | STR0050LC005 |
| LifeForge 3D cylindrical standard liquid storage bag, upstream type | 100L | 5 | STR0100LC005 |
| LifeForge 3D cylindrical standard liquid storage bag, upstream type | 200L | 5 | STR0200LC005 |
| LifeForge 3D cylindrical standard liquid storage bag, downstream type | 50L | 5 | STR0050L0005 |
| LifeForge 3D cylindrical standard liquid storage bag, downstream type | 100L | 5 | STR0100L0005 |
| LifeForge 3D cylindrical standard liquid storage bag, downstream type | 200L | 5 | STR0200L0005 |
| LifeForge 3D folding barrel type standard liquid storage bag, upstream type | 500L | 5 | STR0500LC005 |
| LifeForge 3D folding barrel type standard liquid storage bag, upstream type | 1000L | 5 | STR1000LC005 |
| LifeForge 3D folding barrel type standard liquid storage bag, downstream type | 500L | 5 | STR0500L0005 |
| LifeForge 3D folding barrel type standard liquid storage bag, downstream type | 1000L | 5 | STR1000L0005 |
| Liquid storage bag support container | ||
| Description | Quantity/Package | Item No. |
| LifeForge stainless steel support barrel | ||
| 50L stainless steel support barrel | 1 | DRUM0050L01 |
| 100L stainless steel support barrel | 1 | DRUM0100L01 |
| 200L stainless steel support barrel | 1 | DRUM0200L01 |
| drum cart | ||
| 50L drum cart | 1 | DOLLY0050L01 |
| 100L drum cart | 1 | DOLLY0100L01 |
| 200L drum cart | 1 | DOLLY0200L01 |
| LifeForge Foldable Support Bucket | ||
| 500L Foldable Support Bucket | 1 | FOLD0500L01 |
| 1000L Foldable Support Bucket | 1 | FOLD1000L01 |
| Disposable piping assembly | |||||
| Material | pipeline, m | lD*OD | Fitting | Quantity/Package | Item No. |
| silicone tube | 0.5 | 1/8 "* 1/4" | Mother Luer Heparin Cap | 50 | STB05018LU50 |
| silicone tube | 0.5 | 1/4 "* 1/2" | 3/4”TC | 50 | STB05014TT50 |
| silicone tube | 0.5 | 1/4 "* 1/2" | aseptic connector | 20 | STB05014SS20 |
| silicone tube | 0.5 | 3/8 "* 5/8" | 3/4”TC | 20 | STB05038TT20 |
| silicone tube | 0.5 | 3/8 "* 5/8" | aseptic connector | 20 | STB05038SS20 |
| silicone tube | 0.5 | 1/2 "* 3/4" | 1.5”TC | 20 | STB05012TT20 |
| silicone tube | 0.5 | 1/2 "* 3/4" | aseptic connector | 20 | STB05012SS20 |
| silicone tube | 0.5 | 3/4 "* 1" | 1.5”TC | 20 | STB05034TT20 |
| silicone tube | 1 | 1/8 "* 1/4" | Mother Luer Heparin Cap | 50 | STB10018LU50 |
| silicone tube | 1 | 1/4 "* 1/2" | 3/4”TC | 50 | STB10014TT50 |
| silicone tube | 1 | 1/4 "* 1/2" | aseptic connector | 20 | STB10014SS20 |
| silicone tube | 1 | 3/8 "* 5/8" | 3/4”TC | 20 | STB10038TT20 |
| silicone tube | 1 | 3/8 "* 5/8" | aseptic connector | 20 | STB10038SS20 |
| silicone tube | 1 | 1/2 "* 3/4" | 1.5”TC | 20 | STB10012TT20 |
| silicone tube | 1 | 1/2 "* 3/4" | aseptic connector | 20 | STB10012SS20 |
| silicone tube | 1 | 3/4 "* 1" | 1.5”TC | 20 | STB10034TT20 |
| silicone tube | 2 | 1/4 "* 1/2" | 3/4”TC | 50 | STB20014TT50 |
| silicone tube | 2 | 1/4 "* 1/2" | aseptic connector | 20 | STB20014SS20 |
| silicone tube | 2 | 3/8 "* 5/8" | 3/4”TC | 20 | STB20038TT20 |
| silicone tube | 2 | 3/8 "* 5/8" | aseptic connector | 20 | STB20038SS20 |
| silicone tube | 2 | 1/2 "* 3/4" | 1.5”TC | 20 | STB20012TT20 |
| silicone tube | 2 | 1/2 "* 3/4" | aseptic connector | 20 | STB20012SS20 |
| silicone tube | 2 | 3/4 "* 1" | 1.5”TC | 20 | STB20034TT20 |
| silicone tube | 3 | 1/2 "* 3/4" | 1.5”TC | 10 | STB30012TT10 |
| silicone tube | 3 | 1/2 "* 3/4" | aseptic connector | 10 | STB30012SS10 |
| silicone tube | 3 | 3/4 "* 1" | 1.5”TC | 10 | STB30034TT10 |
| C- Flex tube | 1 | 1/4 "* 1/2" | Blind plugging | 50 | CTB10014DE50 |
| C- Flex tube | 1 | 3/8 "* 5/8" | Blind plugging | 20 | CTB10038DE20 |
| C- Flex tube | 2 | 1/4 "* 1/2" | Blind plugging | 50 | CTB20014DE50 |
| C- Flex tube | 2 | 3/8 "* 5/8" | Blind plugging | 20 | CTB20038DE20 |
| C- Flex tube | 3 | 1/4 "* 1/2" | Blind plugging | 50 | CTB30014DE50 |
| C- Flex tube | 3 | 3/8 "* 5/8" | Blind plugging | 20 | CTB30038DE20 |
