- cannot be disassembled, reducing the risk of infection by external bacteria.
- Sterility Assurance: The RTS connector assembly was tested using 106 B.diminuta for bacterial challenge aerosolization. The RTS connector assembly was connected according to standard operating procedures in a bioburden environment of 106 B.diminuta, and a 7-day culture test using sterile medium flow to prove that the connection is sterile, ensuring that the product can achieve sterile connection in the ungraded area.
Product Specifications
| Typical Flow | 71.9L/min at 1.38 bar, temperature 25°C (bidirectional) |
| Maximum differential pressure (when open) | 25°C (bidirectional) |
| operating temperature | 2-40°C |
| Interface Configuration female connector: Male connection: |
from 1/4 inch barbed interface to 1/2 inch barbed interface from 1/4 inch barbed interface to 1/2 inch barbed interface |
| Material Connector: | Polysulfone, USP Class VI ,USP, USP, 21 CFR |
| toxicity plastic classification: endotoxin: |
meets the USP Class VI Biological Test for Plastics In-vivo (only for liquid contact surfaces) (LAL) ≤0.25 EU/mL |

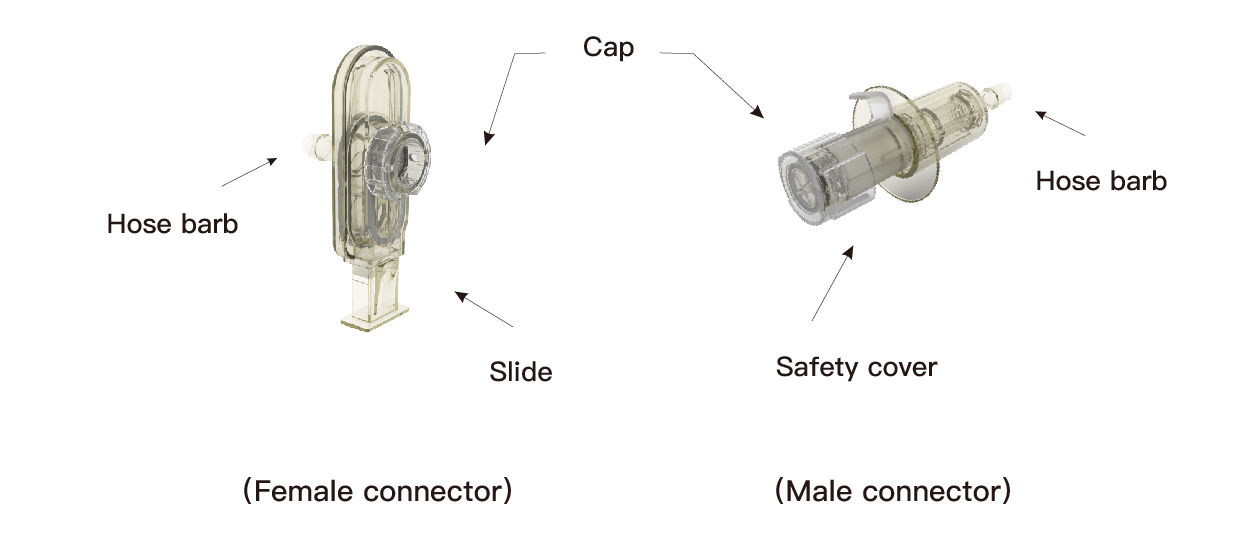

Product Structure
Ordering Information
| Description | Packing quantity | Specifications | Item No. |
|---|---|---|---|
| RTS Connector Kit, Unsterilized | 1 pair of male and female connectors | 1/4" | RTS14C01 |
| 3/8" | RTS38C01 | ||
| 1/2" | RTS12C01 | ||
| RTS male connector, not sterilized | 10 | 1/4" | RTS14M10 |
| 3/8" | RTS38M10 | ||
| 1/2" | RTS12M10 | ||
| RTS female connector, not sterilized | 10 | 1/4" | RTS14F10 |
| 3/8" | RTS38F10 | ||
| 1/2" | RTS12F10 |
