Single use frozen bag

Single use frozen bag


Introducton

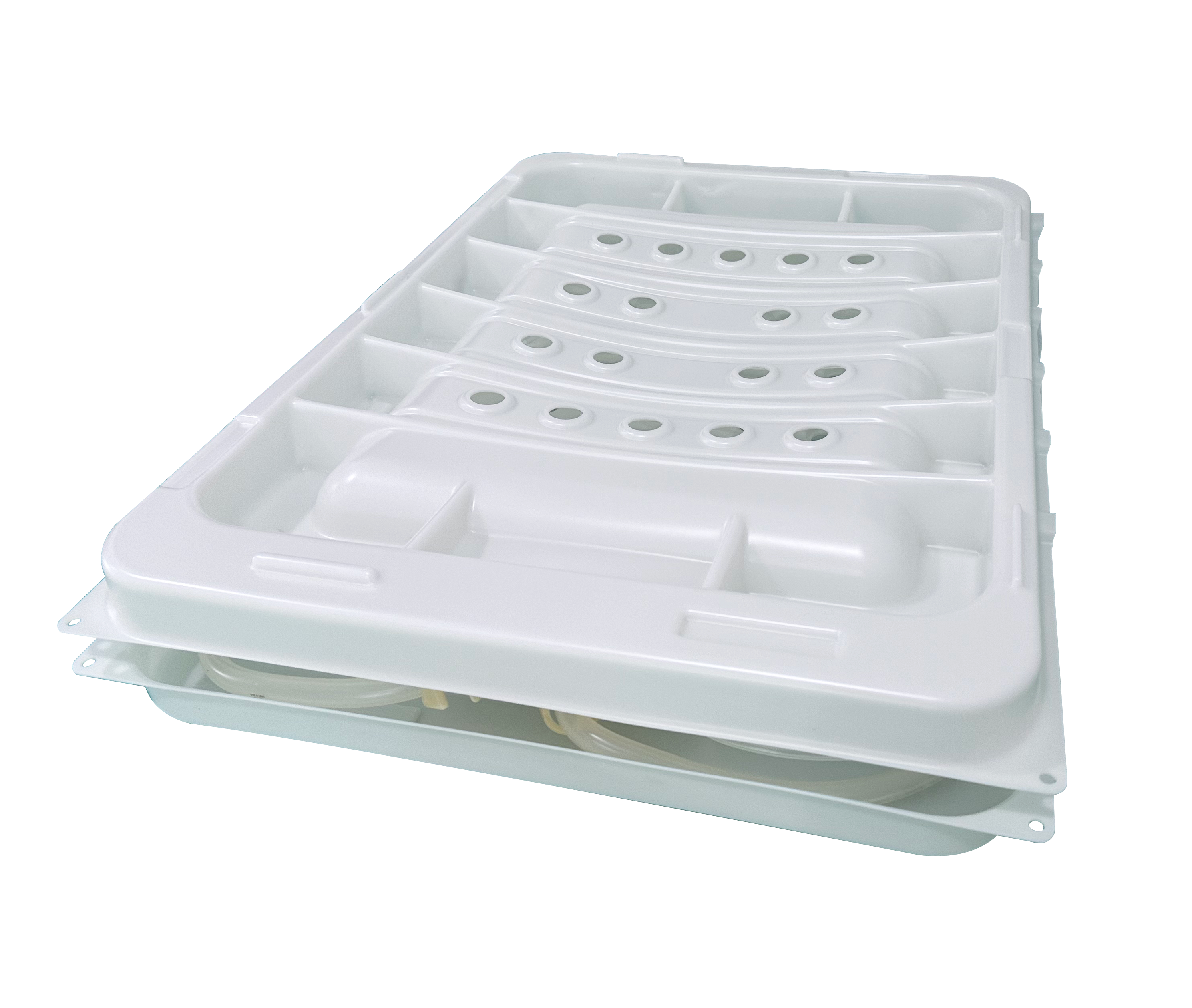

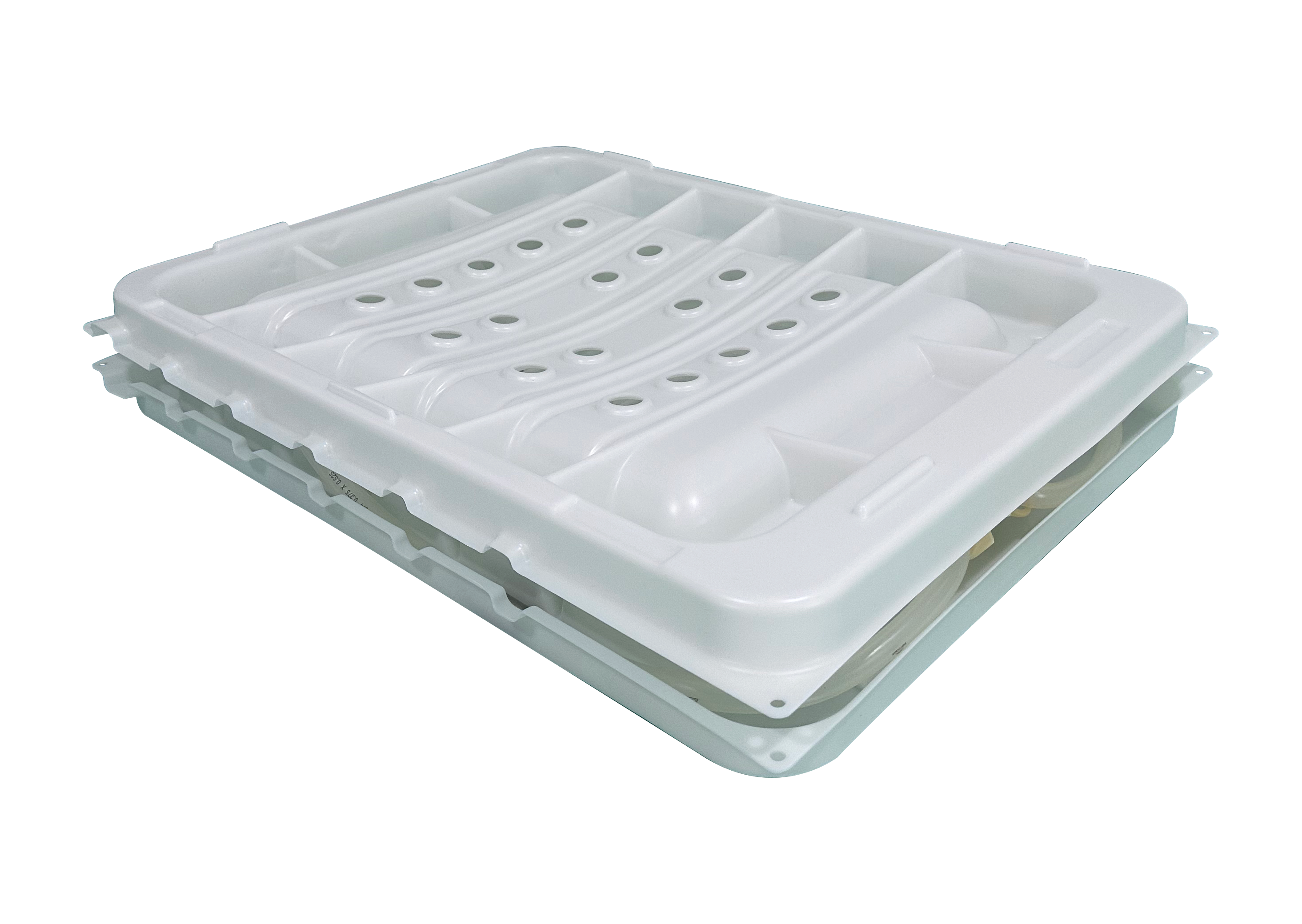

Single use frozen bags are sealed in two semi-rigid shells to protect them from environmental influence.

The shell is composed of high-density polyethylene, which increases resistance, suppresses wrinkles, and fixes the bag body, to protect the storage bag, tube, and connector.

The contact between the bag and the shell ensures efficient energy transfer, achieving rapid and uniform freezing and melting of the liquid.

This product is a single use, sterile, pre assembled container designed with an innovative box carrier that provides excellent protection during the freezing, melting, storage, and transportation of intermediate or product in biopharmaceutical industry.

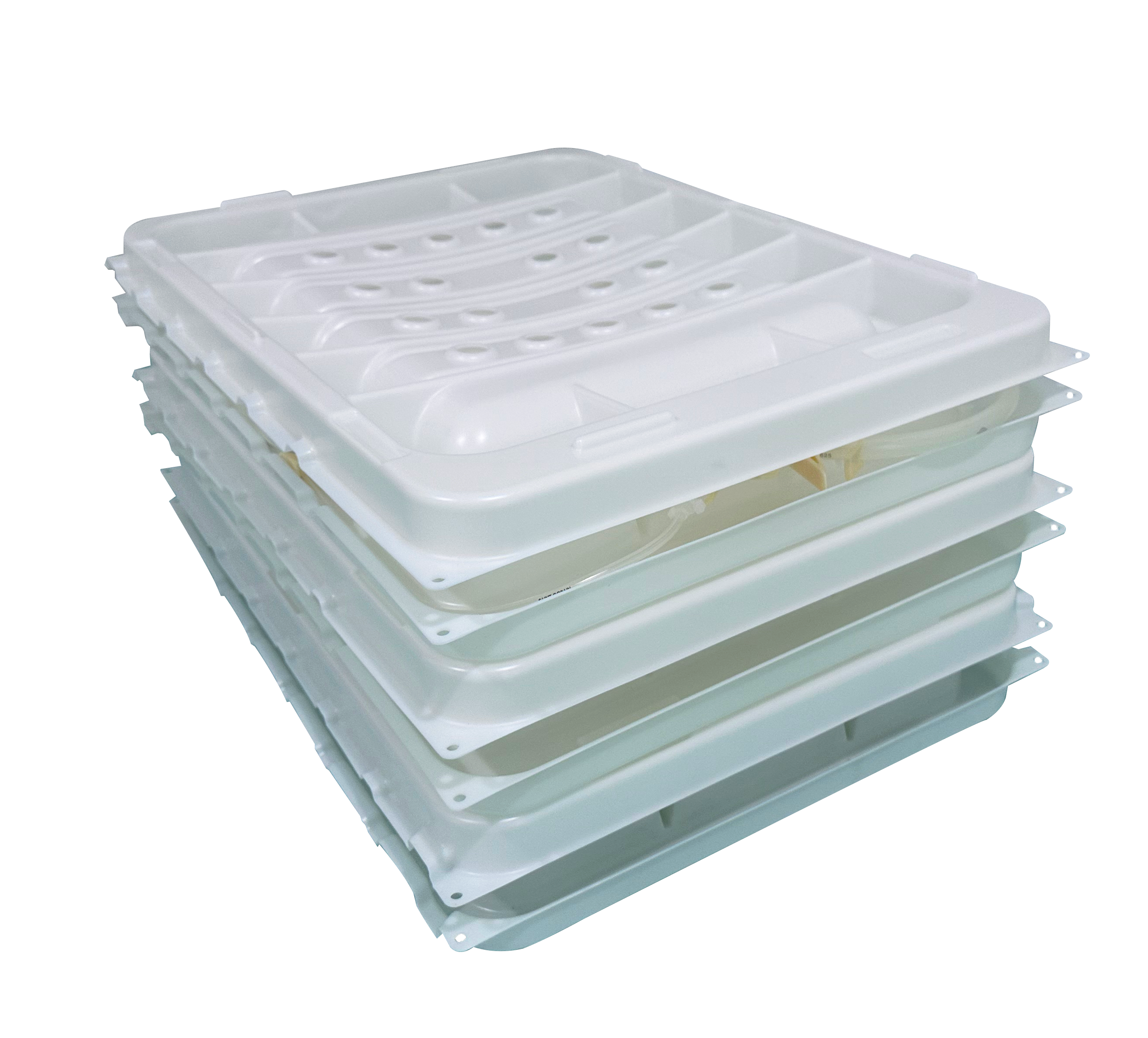

It can be used in clinical drug development and commercial manufacturing. The bag has been validated through a complex testing plan, including freezing, handling, and transportation testing. Fully compliant with GMP standards, strict quality control measures have been implemented, 100% integrity testing has been carried out, ensuring a 10-6 level of sterility assurance during product use. The length and connector of the tubing can be customized, and the surface of the shell can be easily wiped and disinfected for entry into the production area from the thawing point. The shell design allows for stacking during freezing and storage operations.

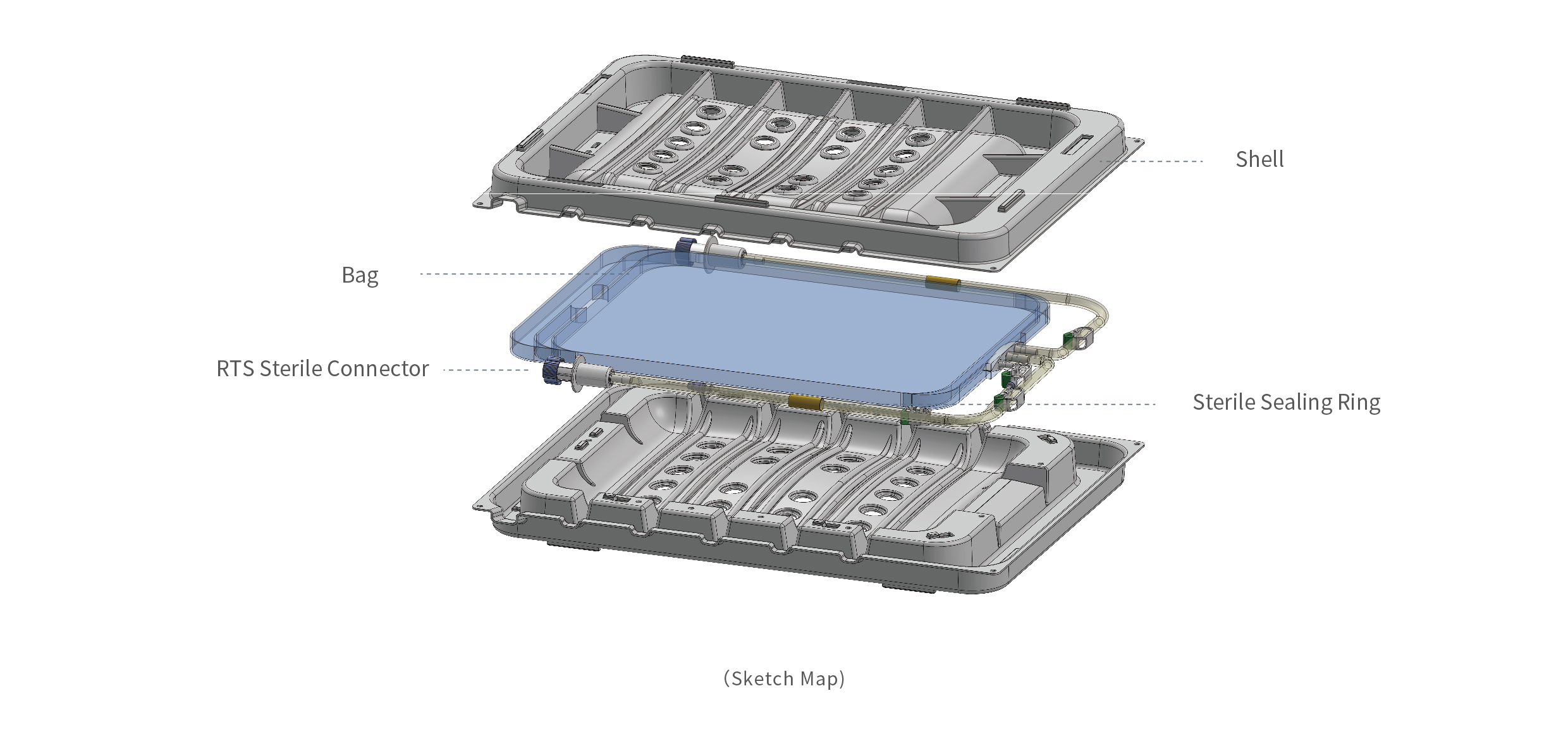

RTS Connector

SPECIFICATIONS

Product Wetted Parts
Membrane (Product wetted layer) ULDPE
RTS Sterile Connector PSU
CPC AQG Sterile Connector PC
CPC MPC Quick Connector PC
Boat Connector LDPE
Luer Connector PP
Needle Free Sampling Valve PC
Tube TPE
Non Product Wetted Parts
Shell HDPE
Screw and Nut PA
Sterile Sealing Ring Copper-Nickel
Clamp POM/TPU

Ordering Information

CAT. NO. with PuRobust membrane FZS12RTS01 FZS12GSS01 FZS12MPC01
CAT. NO. with PureSupply membrane FZS12RTS01PS FZS12GSS01PS FZS12MPC01PS
Maximum working volume 12L
Suggestion minimum working volume 3L
Inlet and outlet connectors 3/8” RTS Sterile connector (2 male) 3/8” AQG Sterile MPC Quick Connector (1 male + 1 female)
Inlet and outlet disconnect Sterile Sealing Ring
Sampling Needle Free Sampling Valve
Sterile by Gamma
Process Temperature -80°C ~ 60°C
Size (Length*Width*Height) 755*565*130mm
Empty Weight 3KG
